ANGLE BAR
BAR – EQUAL ANGLE | HRAP – 6 Metre Lengths| 3mm | 3mm | 5mm | 5mm | 6mm | 6mm | 10mm | 10mm |
|---|---|---|---|---|---|---|---|
| 304 | 316 | 304 | 316 | 304 | 316 | 304 | 316 |
| 20×20 | 20×20 | – | – | – | – | – | – |
| 25×25 | 25×25 | 25×25 | 25×25 | 25×25 | 25×25 | – | – |
| 30×30 | 30×30 | 30×30 | 30×30 | 30×30 | 30×30 | – | – |
| 40×40 | 40×40 | 40×40 | 40×40 | 40×40 | 40×40 | – | – |
| 50×50 | 50×50 | 50×50 | 50×50 | 50×50 | 50×50 | – | – |
| – | – | – | – | 65×65 | 65×65 | 65×65 | 65×65 |
| – | – | – | – | 75×75 | 75×75 | 75×75 | 75×75 |
| – | – | – | – | 100×100 | 100×100 | 100×100 | 100×100 |

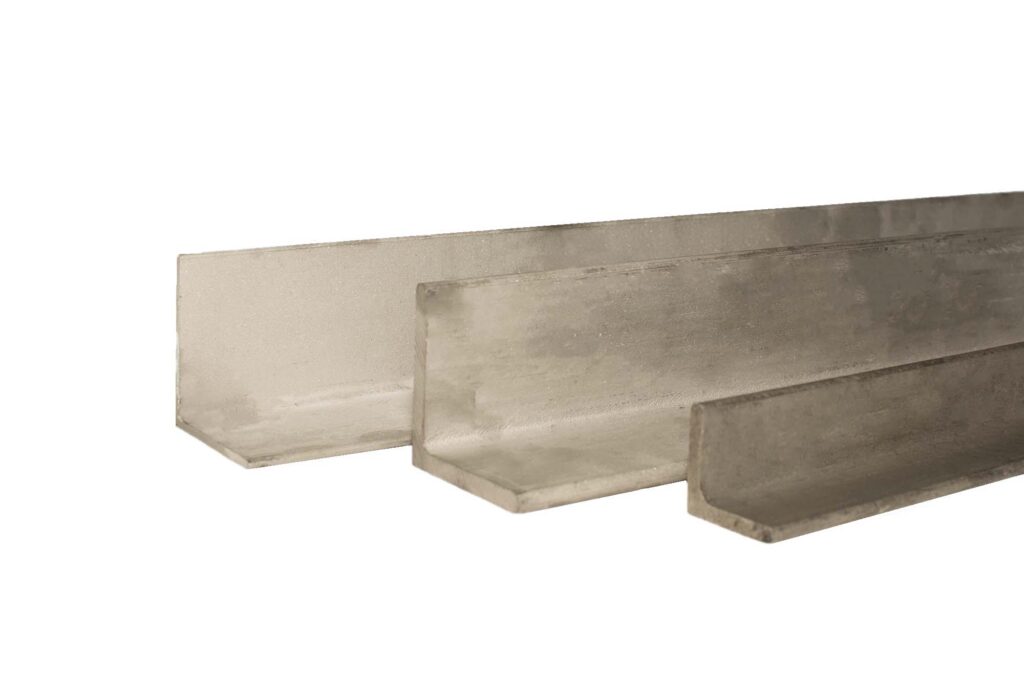

Stainless steel angle bar, commonly referred to as angle iron or L-bar, is one of the most versatile and widely used structural profiles available in stainless steel. Comprising two legs that meet at a 90-degree angle, this profile delivers exceptional rigidity and load-bearing capacity across a broad spectrum of structural, architectural, and industrial applications. Offered in both equal- and unequal-leg configurations, stainless steel angle bars can be adapted to suit virtually any design or engineering requirement.
Available in Grade 304 and Grade 316 stainless steel, the angle bar combines the inherent structural strength of the L-profile with the long-term corrosion resistance that stainless steel is renowned for. Grade 304 provides excellent performance in general indoor and outdoor environments, while Grade 316, containing molybdenum, offers heightened resistance to chloride attack, making it the preferred specification for marine, coastal, food processing, chemical, and pharmaceutical applications.
Common uses for stainless steel angle bar include framing, brackets, supports, edging, trim, shelving reinforcement, machine guards, tank construction, and architectural detailing. Its flat, stable base makes it easy to weld, drill, cut, and bolt, giving fabricators significant flexibility during construction and installation. The clean, sharp corners and smooth face of stainless steel angle bar make it equally suitable for both functional and visible applications where appearance matters.
The product is available in a wide range of leg widths and thicknesses, enabling specifiers to select the most appropriate section size for their load requirements. Whether used in heavy industrial frameworks, architectural cladding systems, or lightweight interior fixtures, stainless steel angle bar provides a cost-effective, durable, and low-maintenance solution that performs reliably across demanding environments and extended service lives.
