BSP 3 WAY L/T PORT VALVE
316 Grade| NB | Inches | Inches |
|---|---|---|
| 10 | 3/8" | ✓ |
| 15 | 1/2" | ✓ |
| 20 | 3/4" | ✓ |
| 25 | 1" | ✓ |
| 32 | 1 1/4" | ✓ |
| 40 | 1 1/2" | ✓ |
| 50 | 2" | ✓ |

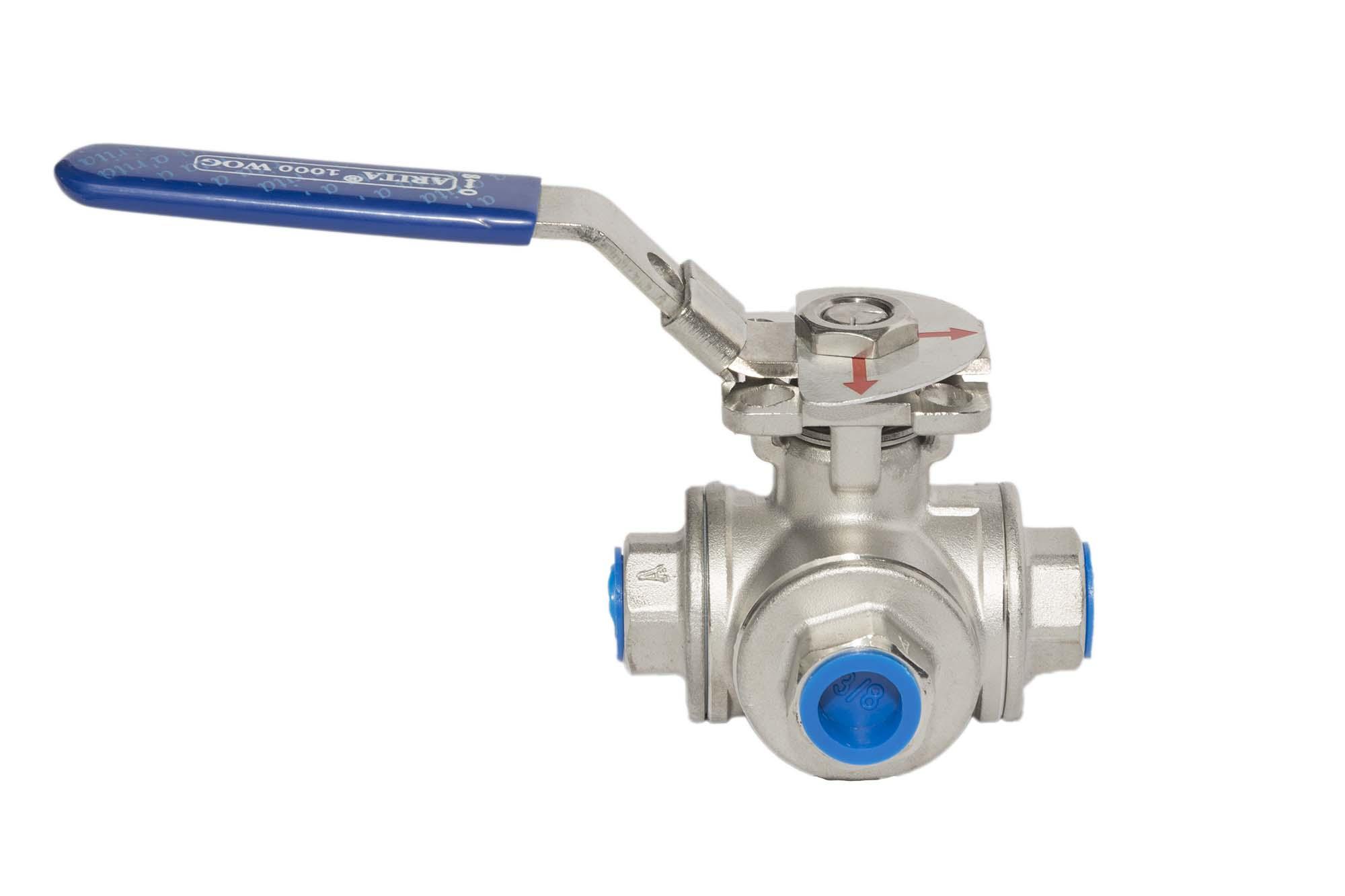

The BSP 3 Way L/T Port Valve is a stainless steel quarter-turn multi-port ball valve with British Standard Pipe threaded connections, designed to divert, mix, or distribute flow between three connected pipe ports using a single ball with either an L-shaped or T-shaped internal port configuration. As clearly shown in the image, the valve presents three BSP threaded connection ports, one on the left, one on the right facing the viewer, and one on the rear of the body, with the blue PTFE seat inspection plugs clearly visible on the two side ports and the characteristic multi-port body profile immediately distinguishable from a standard two-port ball valve. The blue lever handle at the top is shown in the operating position with the standard locking plate and position indicator visible, and the overall compact body construction is consistent with the two-piece design used across this BSP valve range.
Available exclusively in Grade 316 stainless steel, the range covers seven nominal bore sizes from 10NB (3/8") through to 50NB (2"), including 10NB, 15NB, 20NB, 25NB, 32NB, 40NB, and 50NB, addressing the BSP threaded pipe sizes most commonly used in process, chemical, food, and industrial fluid systems where multi-port flow management is required.
The L/T port designation indicates that this valve is available in both L-port and T-port ball configurations. The L-port ball creates an L-shaped internal flow channel connecting any two of the three ports, depending on the 90-degree position of the ball, enabling flow diversion between two alternative outlets from a common inlet. The T-port ball creates a T-shaped internal channel that can connect all three ports simultaneously or divert between port pairs, providing greater flow distribution and blending flexibility. Both configurations are actuated by the single quarter-turn lever handle, enabling rapid flow path switching in seconds. Grade 316 provides superior chloride corrosion resistance for marine, chemical, food-grade, and general industrial applications.
